May/June 2017 Physics 5054/11: 40 multiple-choice questions, one mark each. No mark is deducted for a wrong answer. Electronic calculators may be used.
Question text

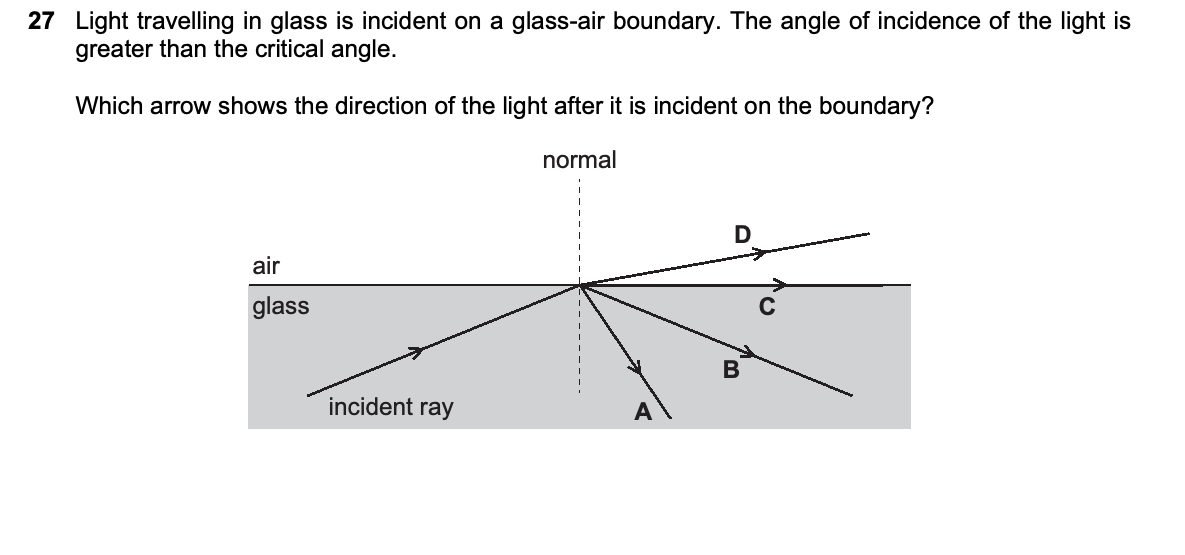

27 Light travelling in glass is incident on a glass-air boundary. The angle of incidence of the light is greater than the critical angle. Which arrow shows the direction of the light after it is incident on the boundary? normal D air glass C B incident ray A

[1 mark]

Select your answer:

5054/11/M/J/17Cambridge O Level Physics 5054 · May/June 2017 · Paper 1 variant 1 · Question 27
