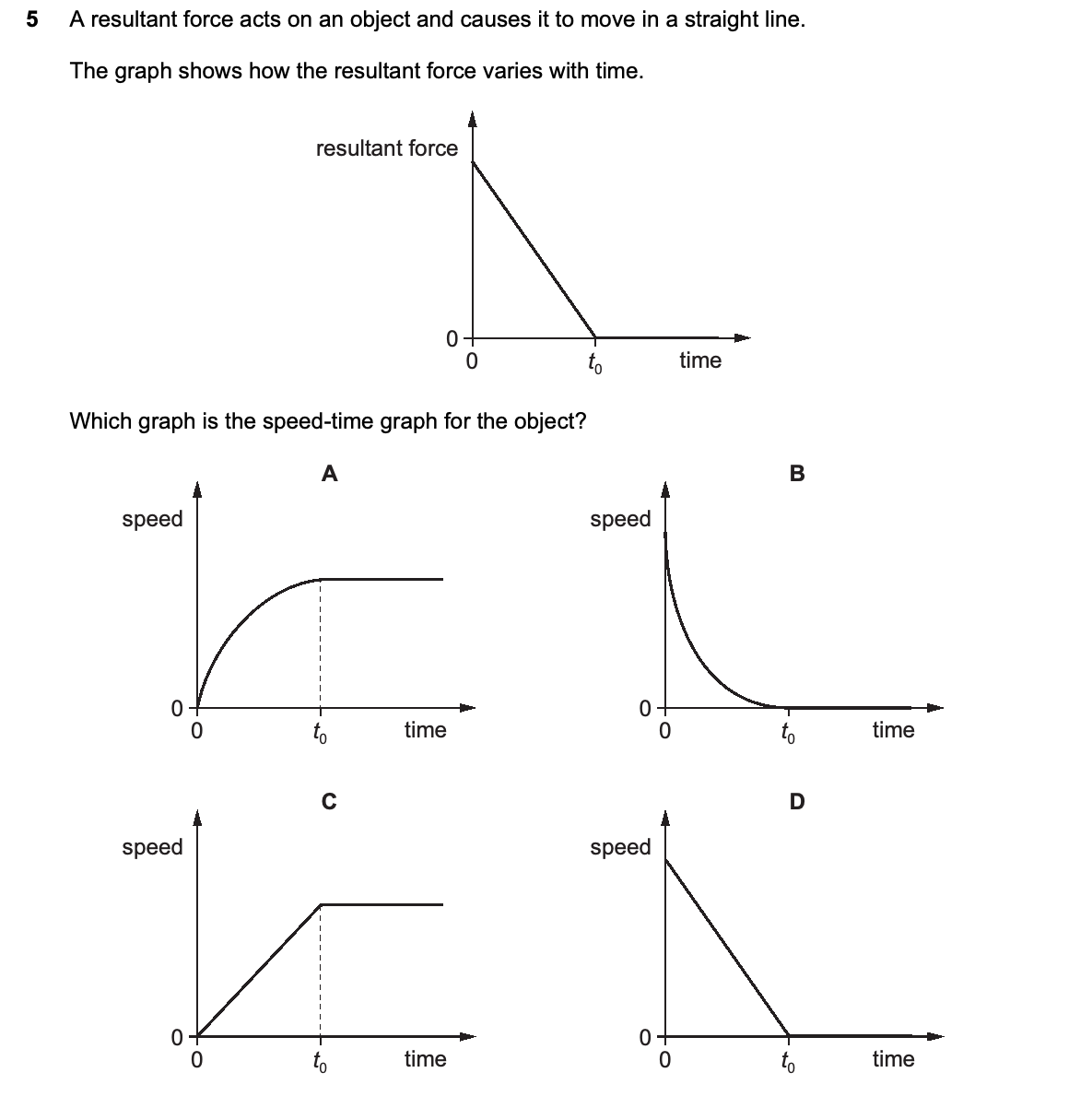

5 A resultant force acts on an object and causes it to move in a straight line. The graph shows how the resultant force varies with time. resultant force 0 0 t time 0 Which graph is the speed-time graph for the object? A B speed speed 0 0 0 t time 0 t time 0 0 C D speed speed 0 0 0 t time 0 t time 0 0
5 A resultant force acts on an object and causes it to move in a straight line.
The graph shows how the resultant force varies with time.
resultant force
0
0 t time
0
Which graph is the speed-time graph for the object?
A B
speed speed
0 0
0 t time 0 t time
0 0
C D
speed speed
0 0
0 t time 0 t time
0 0
Select your answer:
