CIE-5054-2018-MJ-p12 · Question 39

May/June 2018 Physics 5054/12: 40 multiple-choice questions, one mark each. No mark is deducted for a wrong answer. Electronic calculators may be used.
Question text

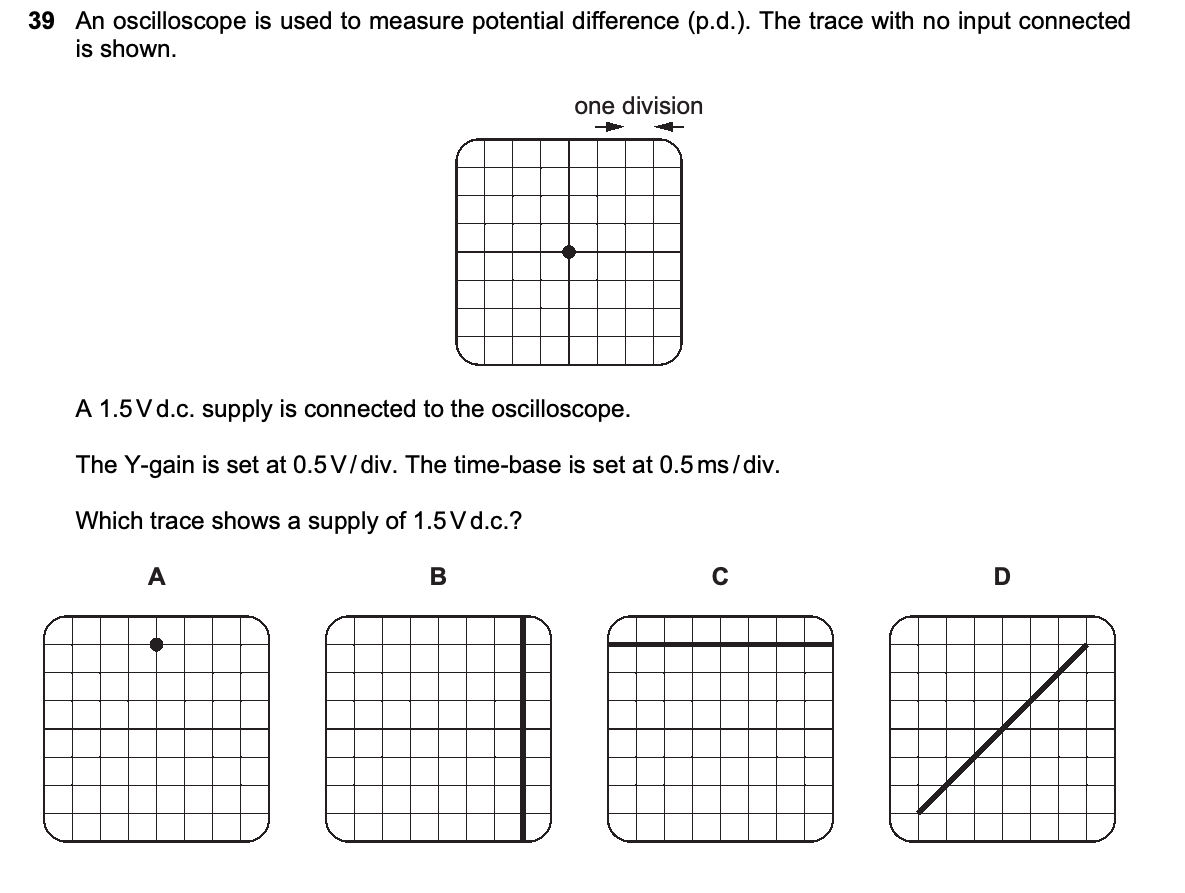

39 An oscilloscope is used to measure potential difference (p.d.). The trace with no input connected is shown. one division A 1.5Vd.c. supply is connected to the oscilloscope. The Y-gain is set at 0.5V/div. The time-base is set at 0.5ms/div. Which trace shows a supply of 1.5Vd.c.? A B C D

[1 mark]
