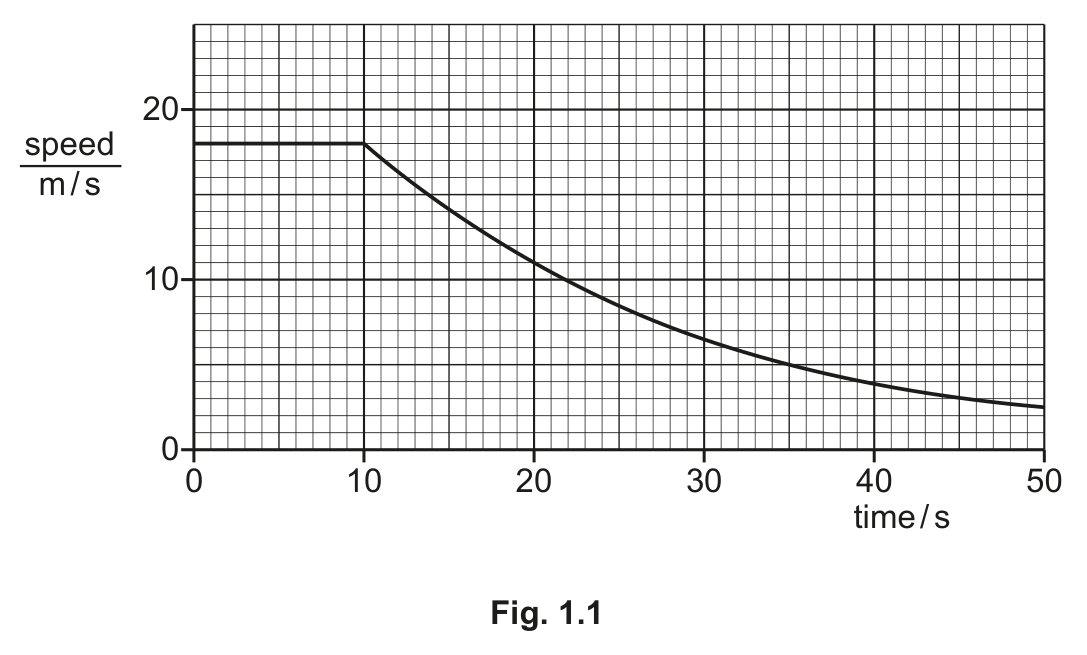

Fig. 1.1 shows the speed–time graph for a car travelling on a straight horizontal road.
(a)Describe the motion of the car shown in Fig. 1.1.
Answer guidance
Describe Say what happens, in order. Reasons are not required unless the question also asks why.
[2 marks]
(b)(i)At t = 10 s the engine is switched off; the brakes are not applied. Name two forces that cause the change in motion after t = 10 s.
Answer guidance
State A short answer. No explanation is needed, and adding one cannot earn extra marks.
[1 mark]
(b)(ii)Suggest why Fig. 1.1 is a curve after t = 10 s.
Answer guidance
Suggest More than one answer may be acceptable, so long as it is consistent with the physics.
[1 mark]
(c)(i)Between t = 10 s and t = 20 s the car speed changes from 18 m/s to 11 m/s. Its mass is 1200 kg. Calculate its change in momentum in this time. Give the unit.
Answer guidance
Calculate Show your working. The method can earn marks even when the final value is wrong, and a bare answer often cannot.
[2 marks]
(c)(ii)For the same 10 s interval and 1200 kg car, calculate the average resultant force exerted on it.
[2 marks]
5054/22/M/J/23Cambridge O Level Physics 5054 · May/June 2023 · Paper 2 variant 2 · Question 1
