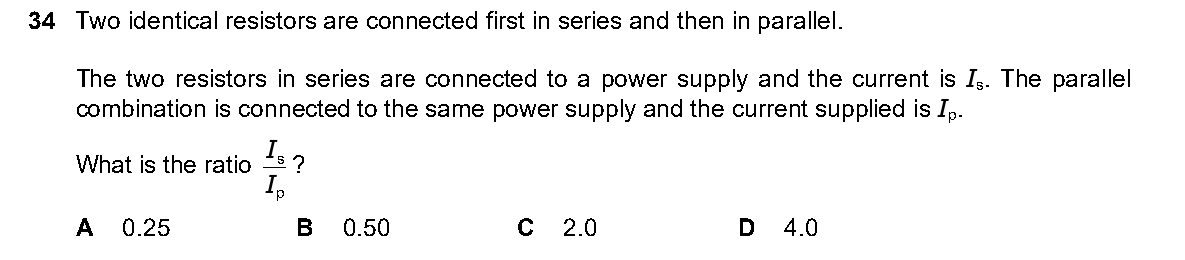

34 Two identical resistors are connected first in series and then in parallel. The two resistors in series are connected to a power supply and the current is Iₛ. The parallel combination is connected to the same power supply and the current supplied is Iₚ. What is the ratio Iₛ / Iₚ? A 0.25 B 0.50 C 2.0 D 4.0
34 Two identical resistors are connected first in series and then in parallel.
The two resistors in series are connected to a power supply and the current is Iₛ. The parallel combination is connected to the same power supply and the current supplied is Iₚ.
What is the ratio Iₛ / Iₚ?
A 0.25 B 0.50 C 2.0 D 4.0
Select your answer:
