2023 · O/N · 5054/22 | Q6

0/40parts marked · 0 of 80 marks

Question (6 of 10)8 marks · Practise this topic →

Options

Theory: answer each printed part. For drawings, upload a clear photo of your sketch on the supplied figure; show working and units for calculations.

(a)

Read question and case materials as text

Text can be resized with your browser. Refer to the original figures below for diagrams and their layout.

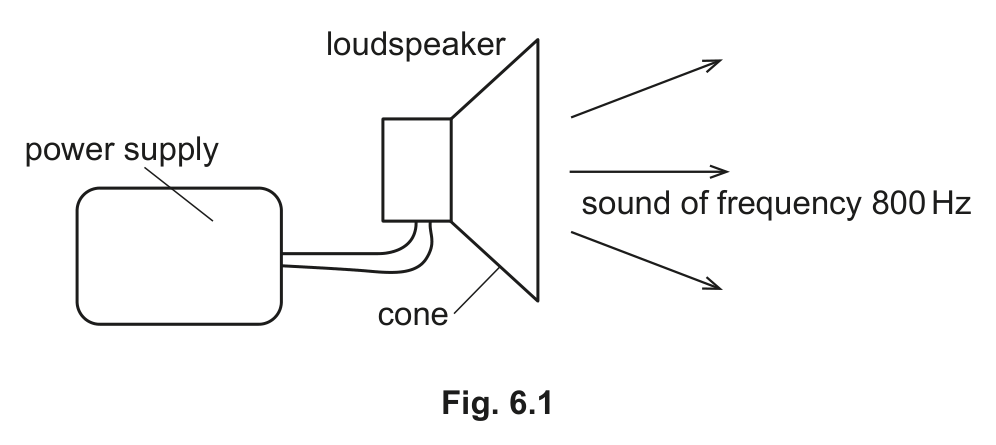

A loudspeaker produces a sound of frequency 800 Hz. Using the loudspeaker context in Fig. 6.1, state what frequency means.

A loudspeaker produces a sound of frequency 800 Hz.

Using the loudspeaker context in Fig. 6.1, state what frequency means.

Answer guidance

Using You must use the thing it names. An answer that reaches the right value another way may not score.

[2 marks]

(b)

Explain whether the 800 Hz sound from the loudspeaker in Fig. 6.1 is audible to a human with healthy hearing.

Answer guidance

Explain Give reasons, not just what happens. Each distinct reason is usually worth a mark.

[1 mark]

(c)

Describe the motion of the cone in Fig. 6.1 and explain how it produces sound.

Answer guidance

Describe Say what happens, in order. Reasons are not required unless the question also asks why.

[3 marks]

(d)

Electromagnetic radiation from explosions on the Sun reaches Earth. Explain why sound from those explosions does not reach Earth.

Answer guidance

Explain Give reasons, not just what happens. Each distinct reason is usually worth a mark.

[2 marks]

5054/22/O/N/23Cambridge O Level Physics 5054 · Oct/Nov 2023 · Paper 2 variant 2 · Question 6
