2024 · M/J · 5054/11 | Q5

0/40parts marked · 0 of 40 marks

Question (5 of 40)1 mark · Practise this topic →

Options

Take the gravitational field strength as 9.8 N/kg (acceleration of free fall 9.8 m/s²), unless a question states otherwise.

Read question and case materials as text

Text can be resized with your browser. Refer to the original figures below for diagrams and their layout.

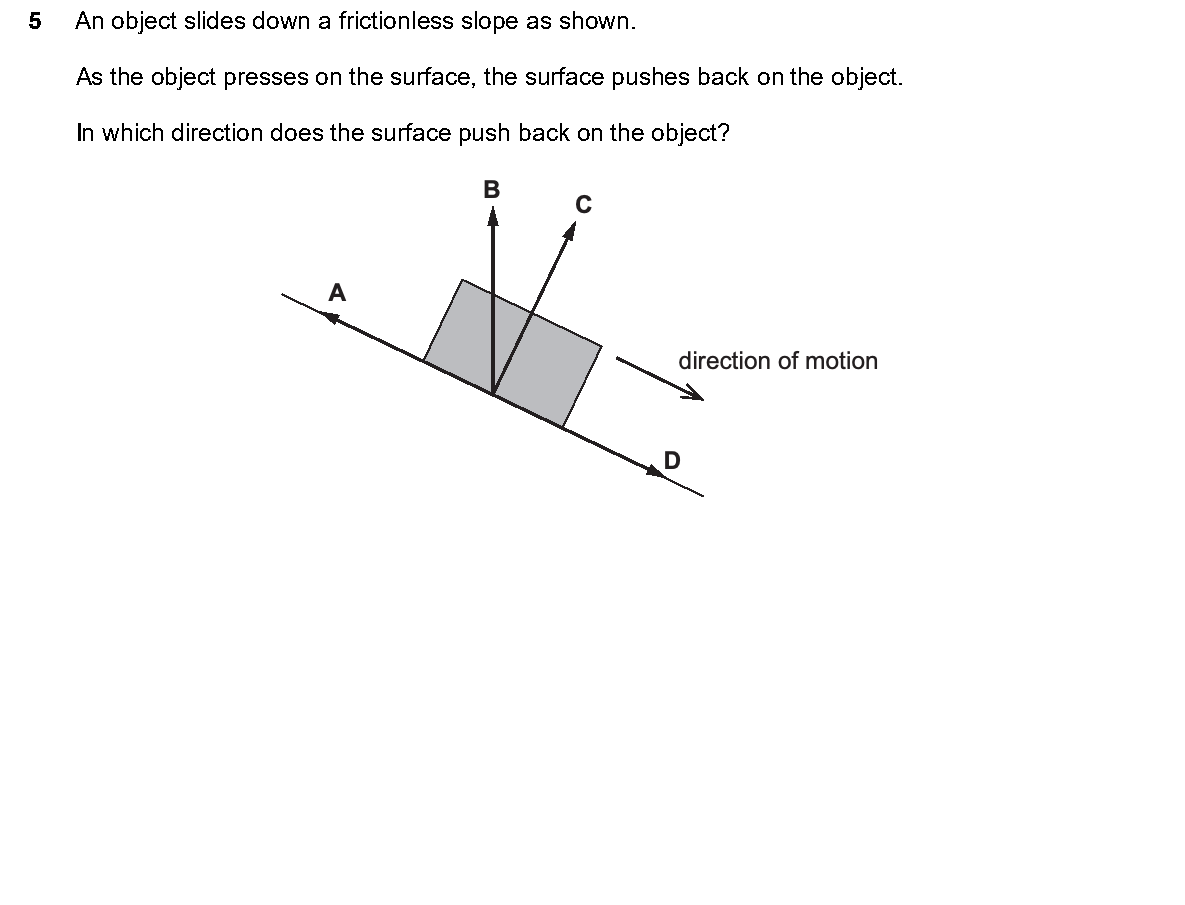

5 An object slides down a frictionless slope as shown. As the object presses on the surface, the surface pushes back on the object. In which direction does the surface push back on the object? B C A direction of motion D

An object slides down a frictionless slope as shown.

As the object presses on the surface, the surface pushes back on the object.

In which direction does the surface push back on the object?

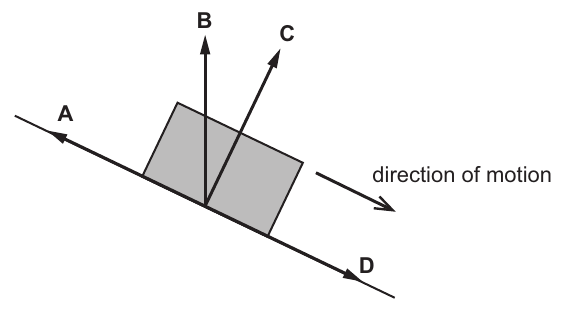

A block on a slope descending to the right. The diagram labels four direction arrows A, B, C and D, and a separate arrow indicates direction of motion down the slope.

View original question

[1 mark]

Reveal correct answer after selection

Select your answer:

5054/11/M/J/24Cambridge O Level Physics 5054 · May/June 2024 · Paper 1 variant 1 · Question 5
