29 The diagrams show five electrical circuits. All of the resistors shown are identical. 1 2 3 4 5 Which circuits have equal resistance? A 1, 2, 3 and 5 B 1, 2, 4 and 5 C 1, 3, 4 and 5 D 2, 3, 4 and 5

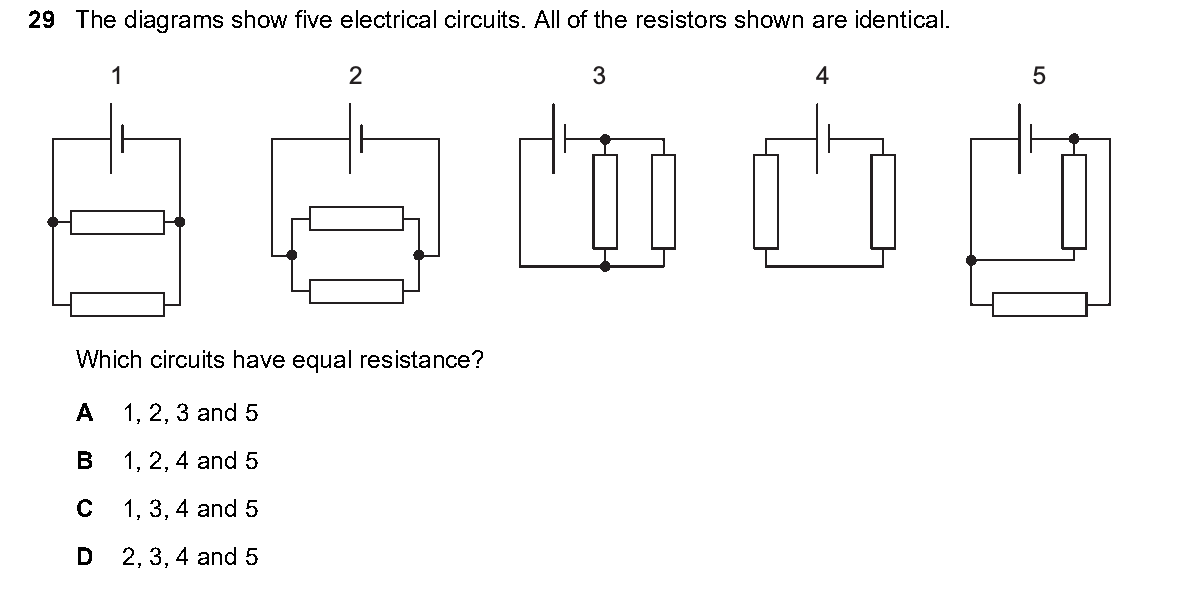

29 The diagrams show five electrical circuits. All of the resistors shown are identical.
1 2 3 4 5
Which circuits have equal resistance?
A 1, 2, 3 and 5
B 1, 2, 4 and 5
C 1, 3, 4 and 5
D 2, 3, 4 and 5
Select your answer:
