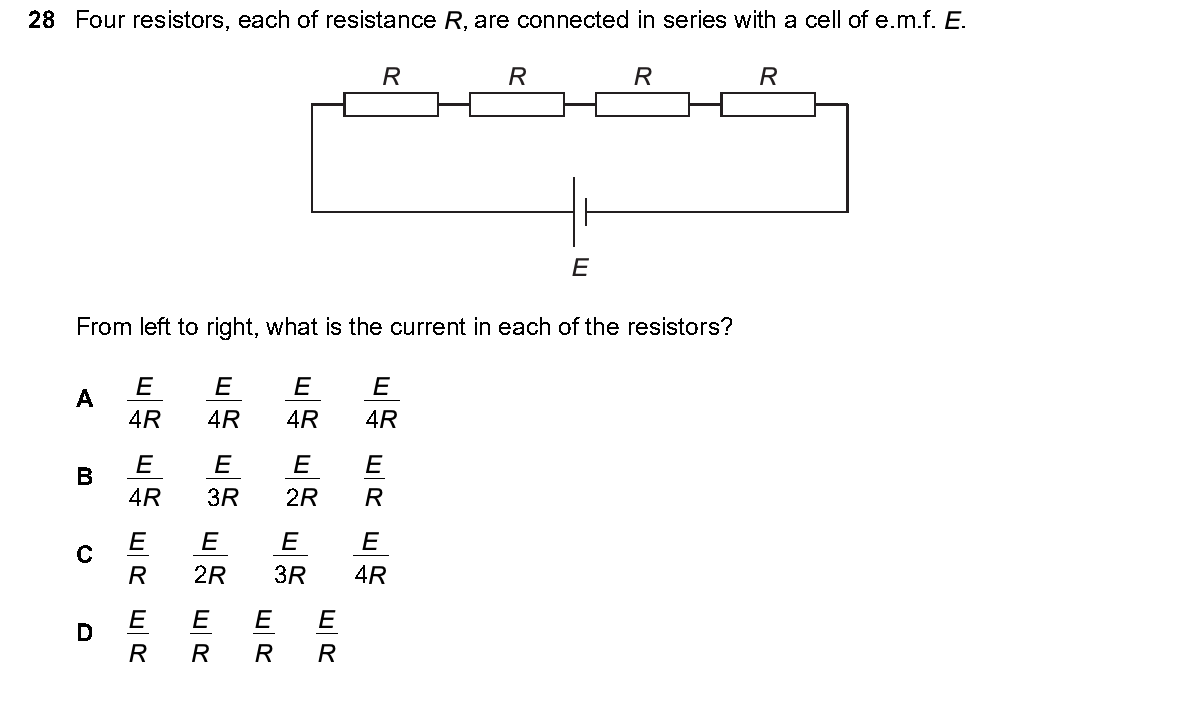

28 Four resistors, each of resistance R, are connected in series with a cell of e.m.f. E. R R R R E From left to right, what is the current in each of the resistors? E E E E A 4R 4R 4R 4R E E E E B 4R 3R 2R R E E E E C R 2R 3R 4R E E E E D R R R R
28 Four resistors, each of resistance R, are connected in series with a cell of e.m.f. E.
R R R R
E
From left to right, what is the current in each of the resistors?
E E E E
A
4R 4R 4R 4R
E E E E
B
4R 3R 2R R
E E E E
C
R 2R 3R 4R
E E E E
D
R R R R
Select your answer:
