CIE-5054-2016-MJ-p11 · Question 33

May/June 2016 Physics 5054/11: 40 multiple-choice questions, one mark each. No mark is deducted for a wrong answer. Electronic calculators may be used.
Question text

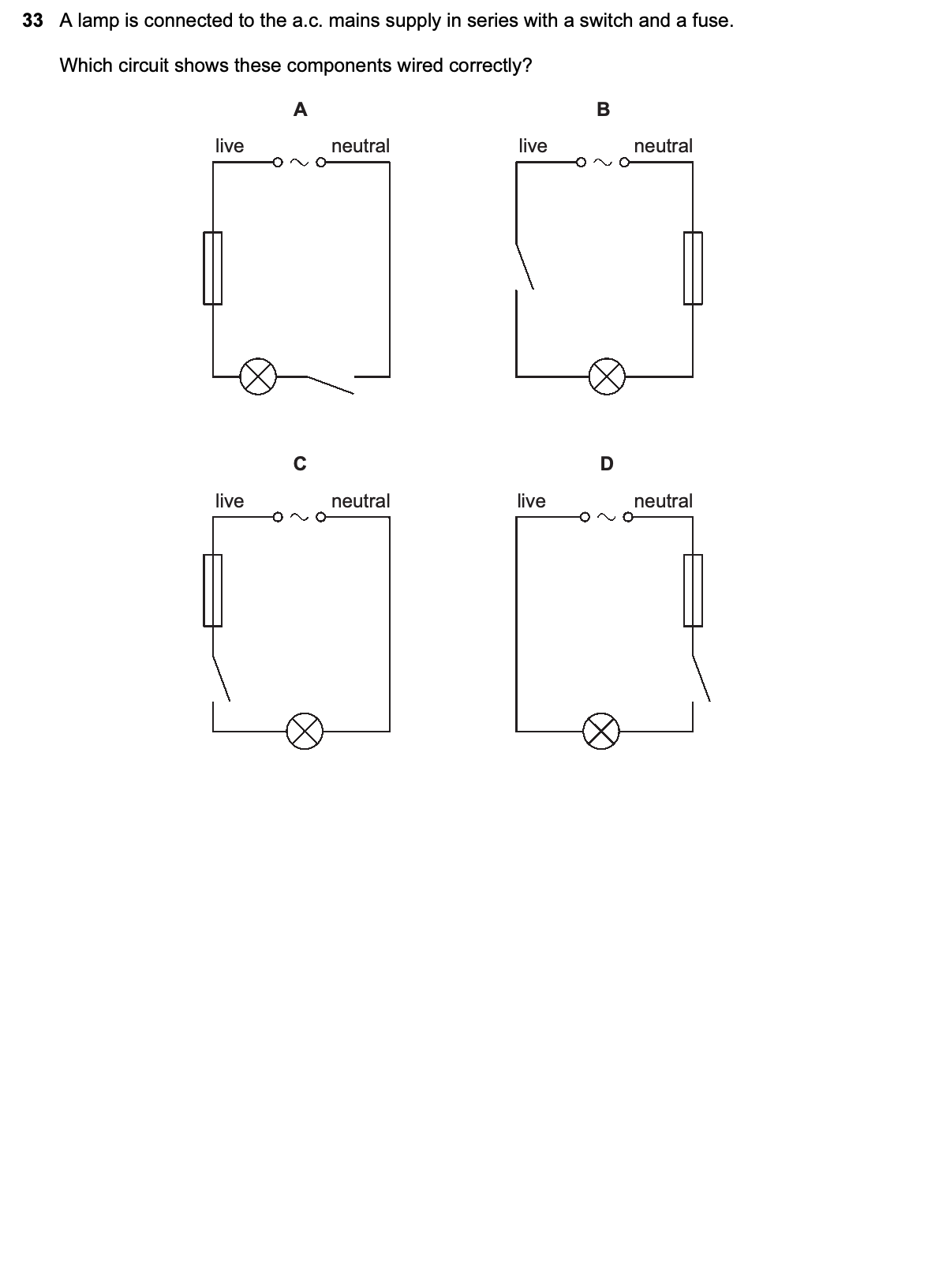

33 A lamp is connected to the a.c. mains supply in series with a switch and a fuse. Which circuit shows these components wired correctly? A B live neutral live neutral C D live neutral live neutral

[1 mark]

Select your answer:

5054/11/M/J/16Cambridge O Level Physics 5054 · May/June 2016 · Paper 1 variant 1 · Question 33
