34 A student is investigating resistance using the circuit shown. variable voltage supply A R V The resistance of R is approximately 5Ω. What are the most suitable ranges for the voltmeter and for the ammeter? voltmeter ammeter range range A 0–2V 0–0.5A B 0–2V 0–2A C 0–5V 0–5A D 0–10V 0–5A

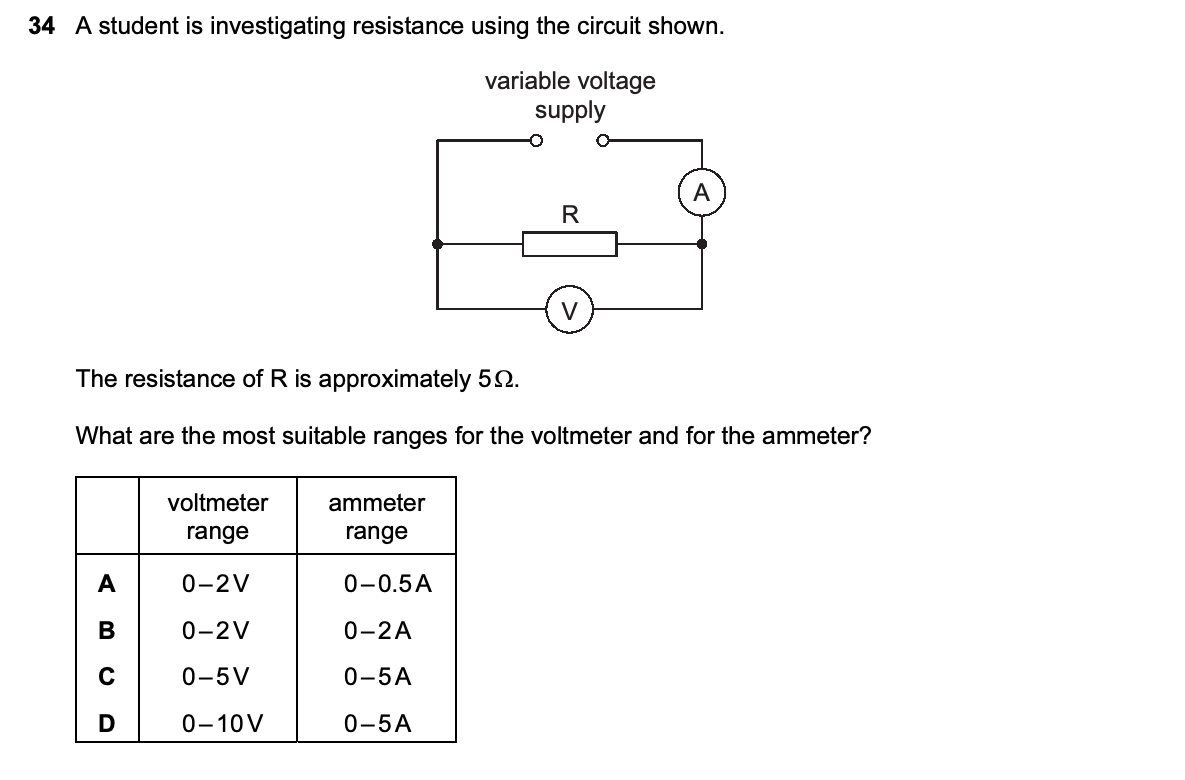

34 A student is investigating resistance using the circuit shown.
variable voltage
supply
A
R
V
The resistance of R is approximately 5Ω.
What are the most suitable ranges for the voltmeter and for the ammeter?
voltmeter ammeter
range range
A 0–2V 0–0.5A
B 0–2V 0–2A
C 0–5V 0–5A
D 0–10V 0–5A
