CIE-5054-2016-MJ-p12 · Question 29

May/June 2016 Physics 5054/12: 40 multiple-choice questions, one mark each. No mark is deducted for a wrong answer. Electronic calculators may be used. Question 35 covers historical syllabus content and is available in this paper only, not current-topic practice.
Question text

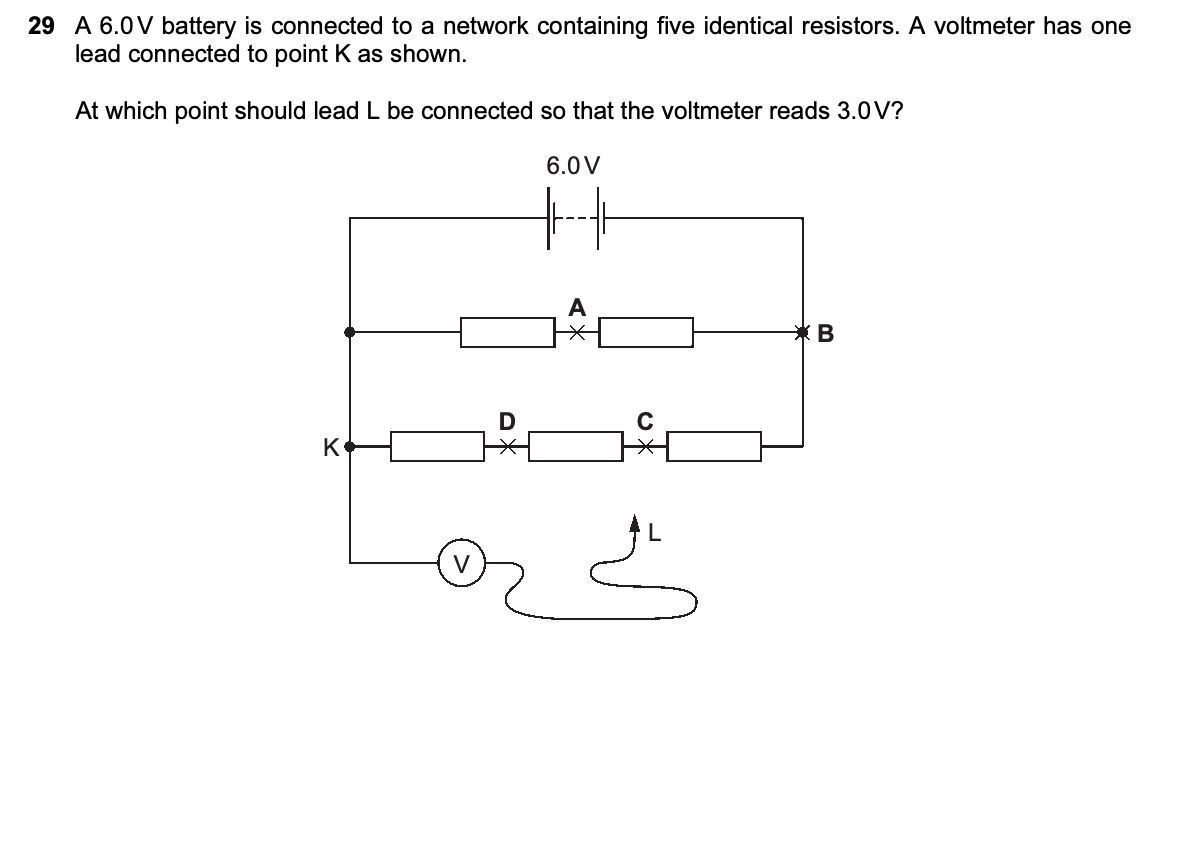

29 A 6.0V battery is connected to a network containing five identical resistors. A voltmeter has one lead connected to point K as shown. At which point should lead L be connected so that the voltmeter reads 3.0V? 6.0 V A B D C K L V

[1 mark]

Select your answer:

5054/12/M/J/16Cambridge O Level Physics 5054 · May/June 2016 · Paper 1 variant 2 · Question 29
