CIE-5054-2016-MJ-p12 · Question 30

May/June 2016 Physics 5054/12: 40 multiple-choice questions, one mark each. No mark is deducted for a wrong answer. Electronic calculators may be used. Question 35 covers historical syllabus content and is available in this paper only, not current-topic practice.
Question text

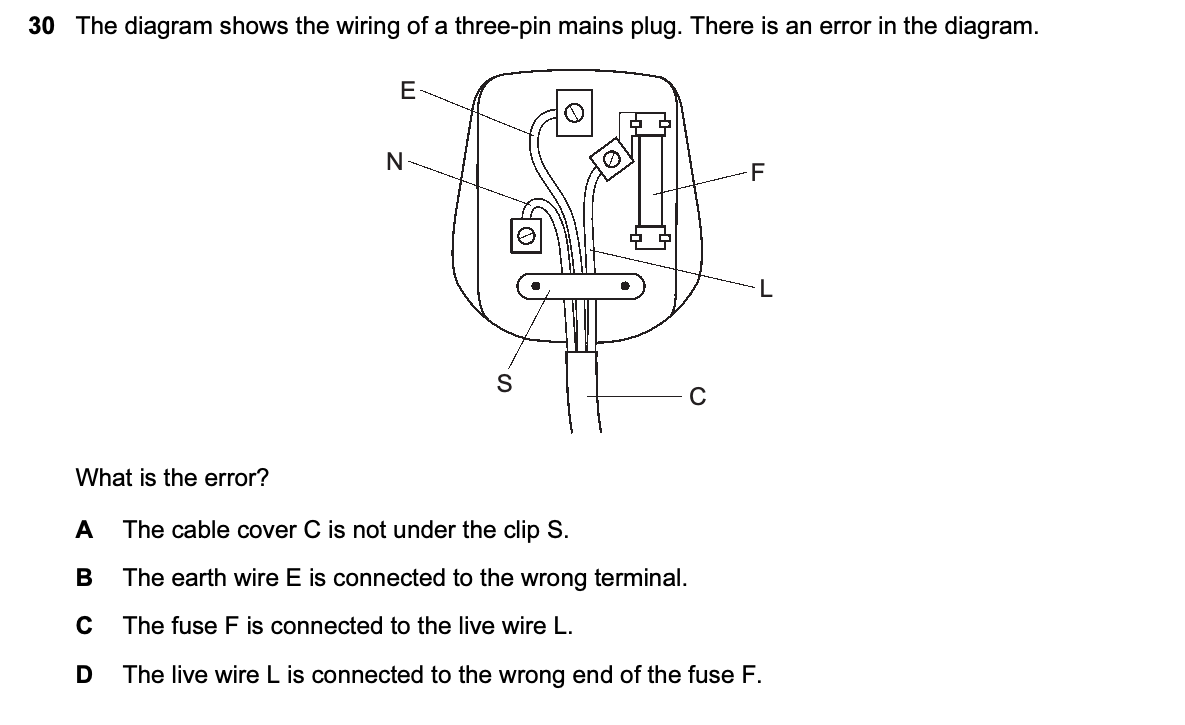

30 The diagram shows the wiring of a three-pin mains plug. There is an error in the diagram. E N F L S C What is the error? A The cable cover C is not under the clip S. B The earth wire E is connected to the wrong terminal. C The fuse F is connected to the live wire L. D The live wire L is connected to the wrong end of the fuse F.

[1 mark]

Select your answer:

5054/12/M/J/16Cambridge O Level Physics 5054 · May/June 2016 · Paper 1 variant 2 · Question 30
