CIE-5054-2016-MJ-p12 · Question 35

May/June 2016 Physics 5054/12: 40 multiple-choice questions, one mark each. No mark is deducted for a wrong answer. Electronic calculators may be used. Question 35 covers historical syllabus content and is available in this paper only, not current-topic practice.

Removed from current syllabusKept here for past-paper practice.

Question text

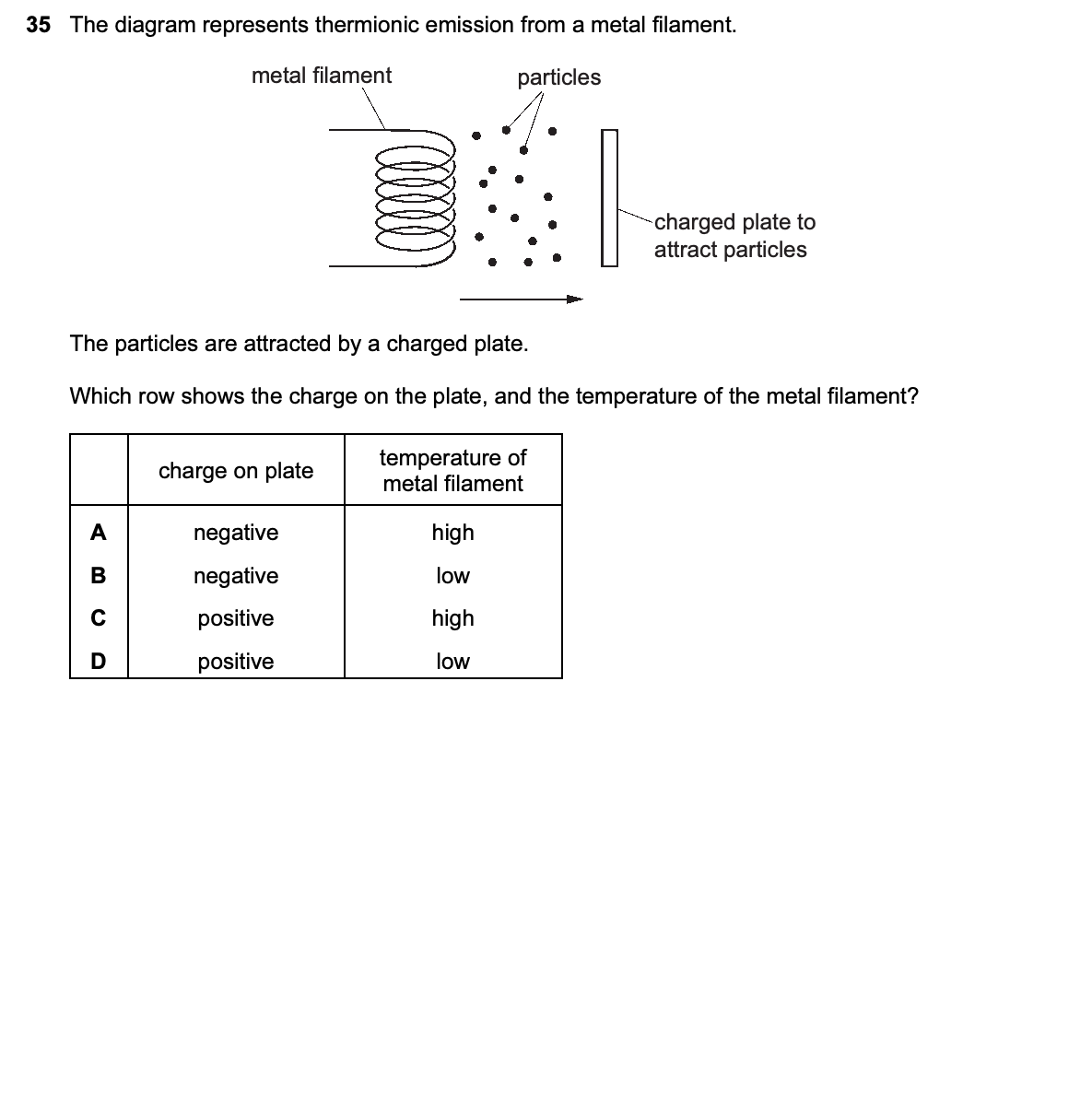

35 The diagram represents thermionic emission from a metal filament. metal filament particles charged plate to attract particles The particles are attracted by a charged plate. Which row shows the charge on the plate, and the temperature of the metal filament? temperature of charge on plate metal filament A negative high B negative low C positive high D positive low

[1 mark]
