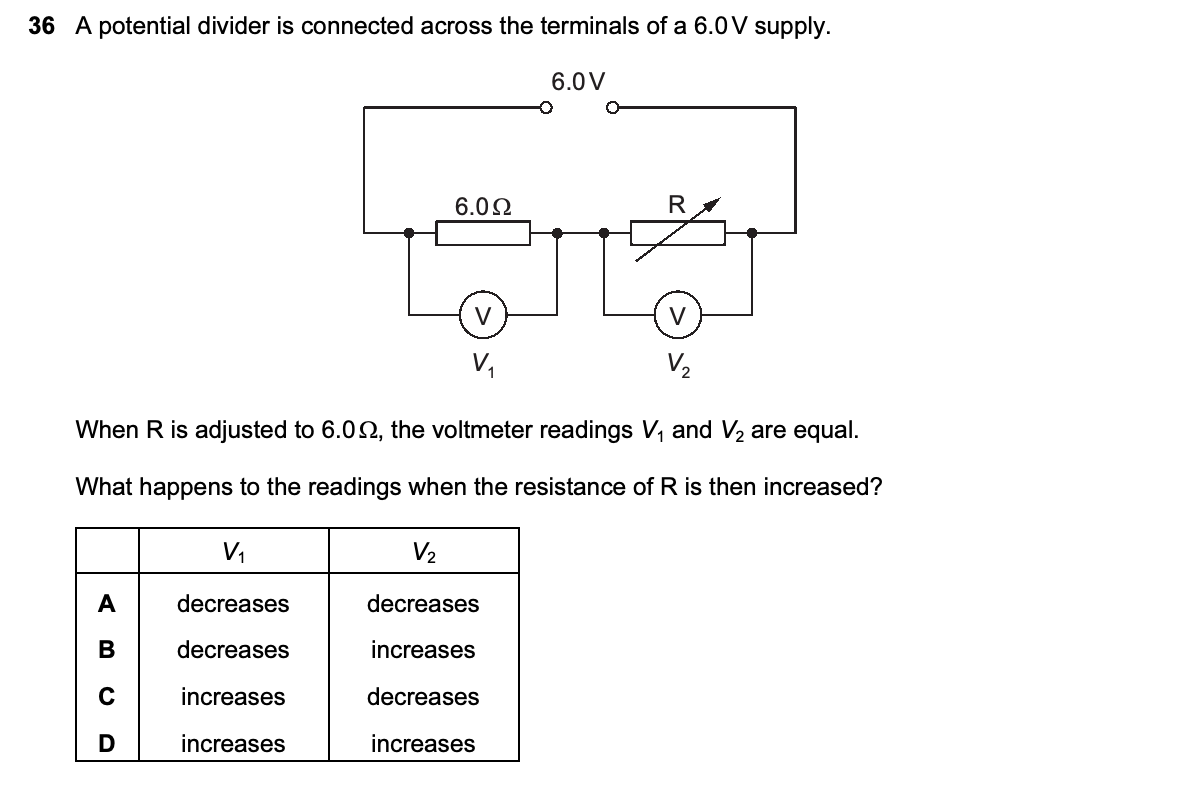

36 A potential divider is connected across the terminals of a 6.0V supply. 6.0 V 6.0 Ω R V V V V 1 2 When R is adjusted to 6.0Ω, the voltmeter readings V and V are equal. 1 2 What happens to the readings when the resistance of R is then increased? V V 1 2 A decreases decreases B decreases increases C increases decreases D increases increases
36 A potential divider is connected across the terminals of a 6.0V supply.
6.0 V
6.0 Ω R
V V
V V
1 2
When R is adjusted to 6.0Ω, the voltmeter readings V and V are equal.
1 2
What happens to the readings when the resistance of R is then increased?
V V
1 2
A decreases decreases
B decreases increases
C increases decreases
D increases increases
