Theory: answer each printed part. For drawings, upload a clear photo of your sketch on the supplied figure; show working and units for calculations.
(a)Read question and case materials as text
Text can be resized with your browser. Refer to the original figures below for diagrams and their layout.

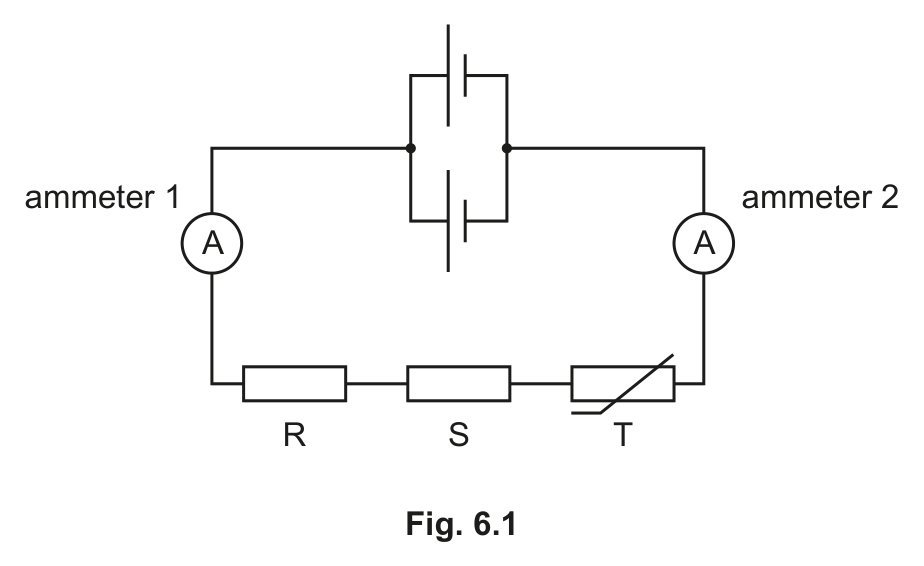

Fig. 6.1 shows two identical 1.5 V cells in parallel, ammeters 1 and 2, series resistors R and S, and thermistor T. Ammeter 1 reads 0.20 A.
Explain why ammeter 2 also reads 0.20 A.
Fig. 6.1 shows two identical 1.5 V cells in parallel, ammeters 1 and 2, series resistors R and S, and thermistor T. Ammeter 1 reads 0.20 A.
Fig. 6.1
Explain why ammeter 2 also reads 0.20 A.
Answer guidance
Explain Give reasons, not just what happens. Each distinct reason is usually worth a mark.
[1 mark]
(b)(i)
R = 1.5 Ω and S = 3.5 Ω. Calculate the resistance of T.
Answer guidance
Calculate Show your working. The method can earn marks even when the final value is wrong, and a bare answer often cannot.
[3 marks]
(b)(ii)
The temperature of T rises. Explain why the potential difference across T decreases.
Answer guidance
Explain Give reasons, not just what happens. Each distinct reason is usually worth a mark.
[3 marks]
5054/21/O/N/23Cambridge O Level Physics 5054 · Oct/Nov 2023 · Paper 2 variant 1 · Question 6
